Ferrofluid
Audio Visualizer Rhythmic Drive

Ferrofluid 1CH PWM Audio Visualizer Driver

1.Brief：

• A cost-effective visualizer module that is feature-rich, highly sensitive, rhythmic, and synchronized.
• PWM audio rhythms, high-frequency delicate PWM frequency control, unique dynamic effects and musical effects, so that the ferrofluid is no longer monotonous.

2.Features:

1. Support App control and2.4G remote control;
2. With ON/OFF timer function;
3. Support OTA firmware upgrade.
4. No need to adjust the sensitivity.
5. Wide Voltage
6. Small enough
7. Build-in static adn dynamic effects and music reactive effects:

   • Voice-activated Capture mode: Capture music through the phone microphone or on-board microphone;
   • player streamer mode: Play music using your phone's exclusive app, decode it and transfer it to the visualizer via Bluetooth.
8. It has the function of adaptive decibel to avoid static images when the sound is too high.
9. Video demo click here.

3.control：

APP Operations

1. 1. Supports App control for iOS and Android devices.
   2. Apple devices require iOS 10.0 or higher, and Android devices require Android 4.4 or higher.
   3. You can search “BanlanX”in App Store or Google Play to find the APP, or scan the QR code to download and install.
   4. Open the App, click the icon in the top right corner of the home page to add device;
   5. Click the icon in the upper right corner of the App to enter the settings page, where you can modify the device name,set the timings, set the on/off effect, OTA firmware upgrade, etc.

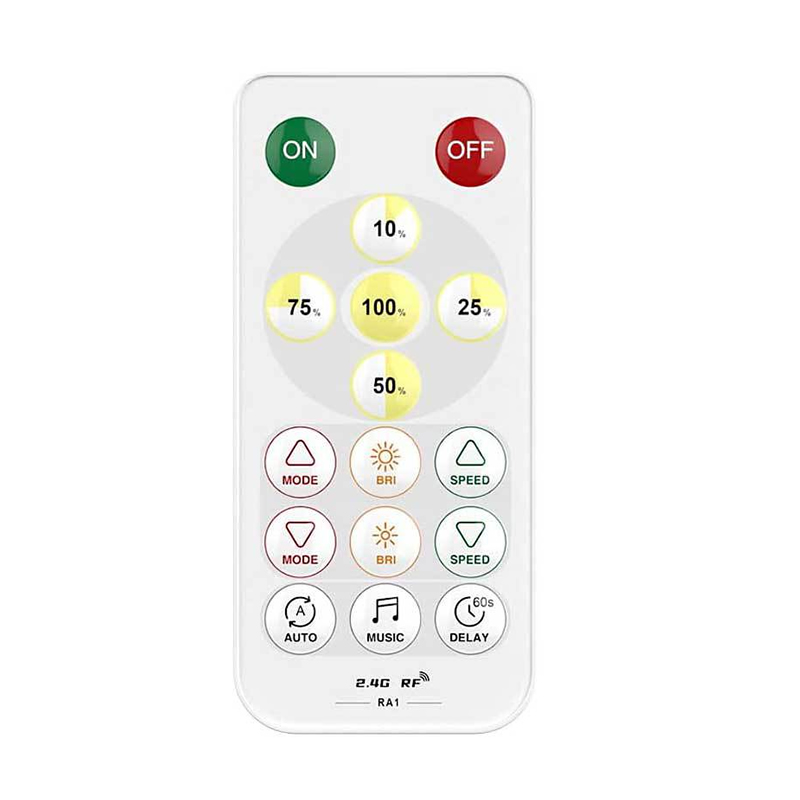

Remote Control Operations

1. 1. Work With 2.4G Remote Control;
   2. Support one-to-many control,one remote control can control multiple controllers;
   3. Support many-to-one control, each controller can bind up to 5 remote controls.

4.Technical Parameters:

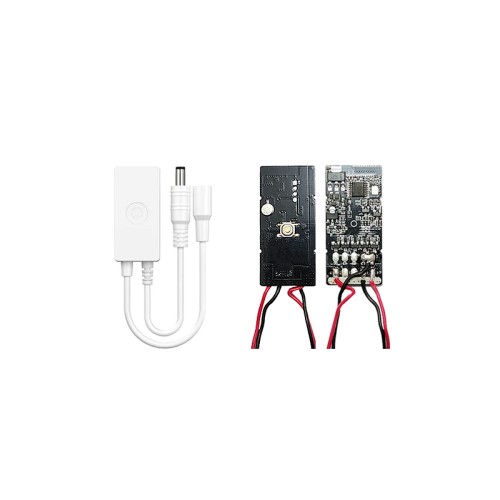

Shell dismantling and wire stripping

• Working Voltage: DC5V~ 24V
• Working Current: 10mA~ 22mA
• PWM Single Channel Maximun Output Current 2A
• Working Temp: -20 ° C~ 60 ° C
• Size:
  • With shell, 55 * 26 * 12;
  • NO shell: 42 * 20 * 4;
  • not including the wires.

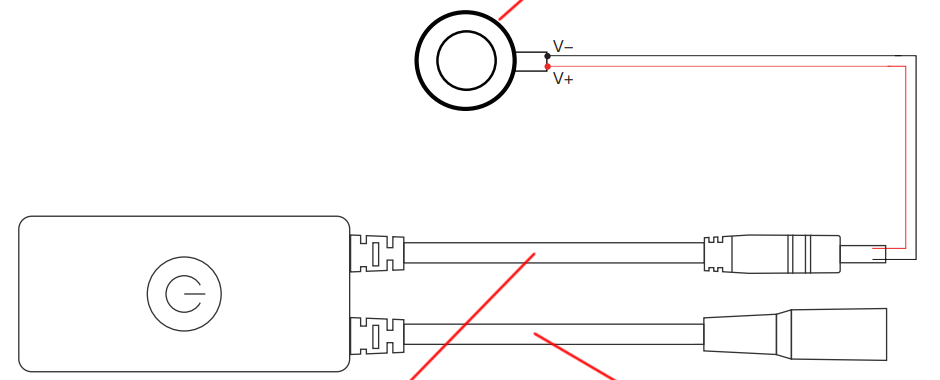

5.Wiring

Solenoid

Output: DC5V-24V                     Input: DC5V-24V

• Visualizer operating voltage: If the input is 5V, the output is also 5V. The input is 12V, and the output is also 12V.
• Solenoid: generally does not distinguish between positive and negative electrodes
