Applications and considerations for visualizers

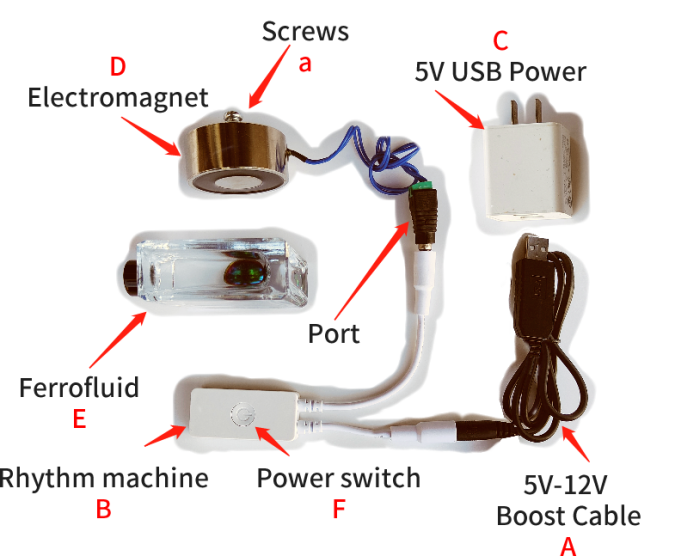

• (F) is the rhythm switch, the default power is on.
• Default use the onboard pickup, can also use the cell phone app control, please check the instruction manual. Or click here to view the video.
• (port) The output wire of the rhythmic device is male, and the DC quick wiring port is female.
• Please do not let the rhythmic device connected to the electromagnet for a long time in the no-load and running state (may burn the electromagnet).

  1. NNormally there is no problem with normal operation, but to be on the safe side, please do not run it for a long time.
  2. If it's getting hot, you can perform a pressure test to determine when it's getting hot and what the problem is.
  3. If it is to be integrated into the speaker, if the distance between the speaker and the electromagnet is too close, it is necessary to do a good job of magnetic isolation, otherwise magnetic heat may occur.
• If the combination with lights found that the lights follow the flash can change a better power adapter can be solved.

Explanation of terms

• Running: the electromagnet is energized and the ferrofluid display bottle is pressed against the electromagnet.
• Idle: the electromagnet is energized and the ferrofluid display bottle is not pressed against to the electromagnet.

Video demo and description
